Schneider Electric

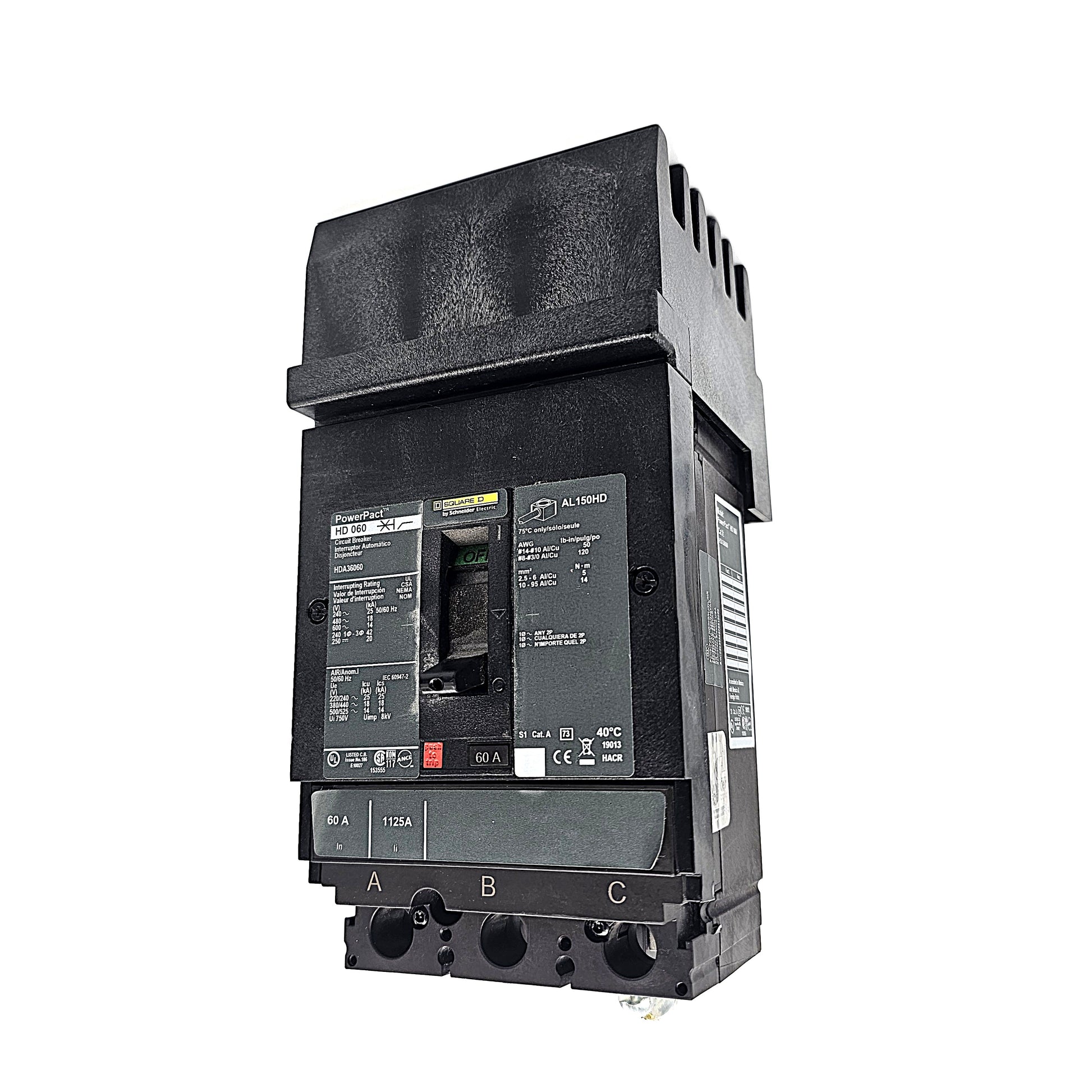

Schneider Electric PowerPact HDA36060 Circuit Breaker 3-Pole, 60 Amp, 600V AC, Thermal Magnetic, HD Frame

Schneider Electric PowerPact HDA36060 Circuit Breaker 3-Pole, 60 Amp, 600V AC, Thermal Magnetic, HD Frame

$775.00 CAD
$775.00 CAD
Sale Sold out
Shipping calculated at checkout.

Manufacturer: Schneider Electric
Catalog Number: HDA36060
Series: PowerPact HD
Poles: 3
Amperage: 60 Amps
Voltage Rating:600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On
Frame Type: HD Frame (600A max frame with 60A trip unit installed)
Handle Feature: Black Square D handle with molded ON/OFF markings and green trip indicator

Weight: Approx. 4.6 kg (10.1 lbs / 162 oz)

Applications: Industrial and commercial power distribution systems. Protection for panelboards, switchboards, and MCC feeders. Designed for feeder, subpanel, and equipment branch circuit protection
