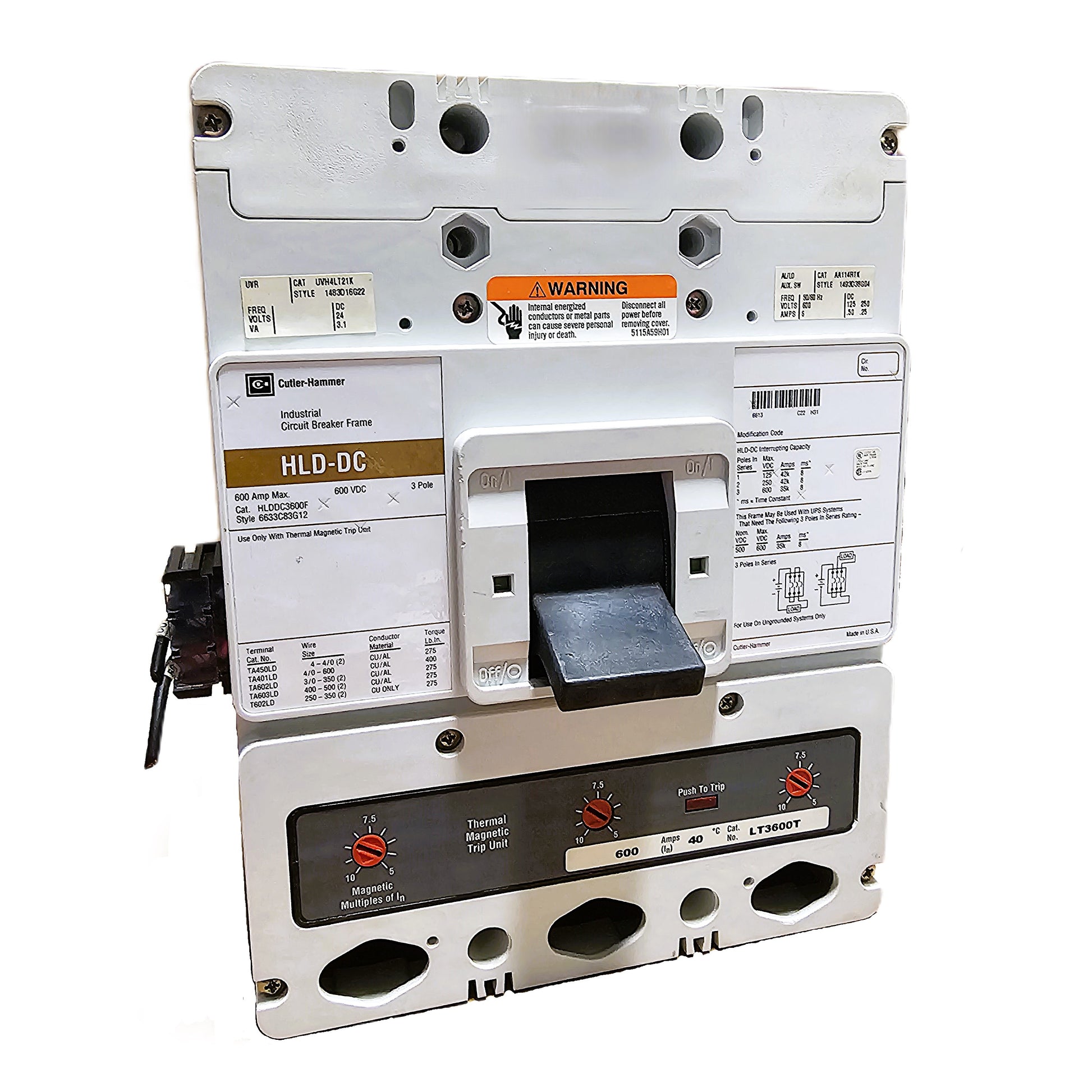

Eaton HLDDC3600F Circuit Breaker 600Amps 600VAC 3-Pole Bolt-On

Manufacturer: Eaton (Cutler-Hammer)

Type: Molded Case Circuit Breaker – DC Rated

Model: HLDDC3600F

Frame: HLD-DC

Amperage: 600A

Voltage Rating: 600 VDC

Poles: 3

Interrupting Rating:

• As rated for DC applications (specific kA rating not listed on faceplate; refer to catalog specs)

Trip Unit: LT3600T (Thermal Magnetic Trip Unit)

Trip Settings: Adjustable for long-time, short-time, and instantaneous trip

Mounting Type: Bolt-On

Style No.: 9A6633C83G32

Standards: UL Recognized, Industrial DC Applications

Application: Designed specifically for direct current (DC) distribution systems, such as battery banks, solar installations, data centers, and industrial DC drives where high current and reliable interruption are essential
