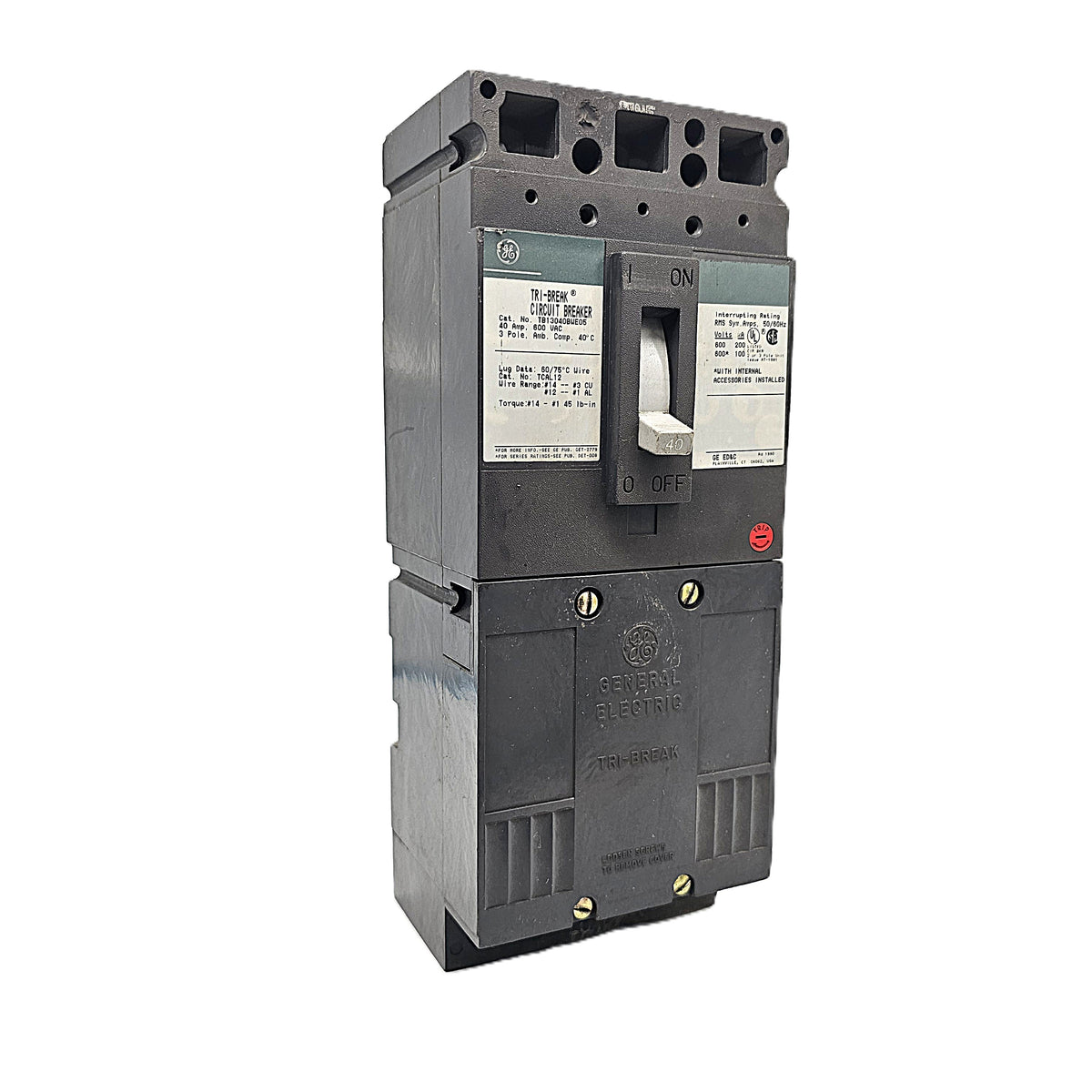

General Electric TB13040BWE05 Circuit Breaker 3-Pole, 40 Amp Frame, 600V AC, 250V DC, Bolt-On, TJK Frame – Tri-Break Series

Manufacturer: General Electric (GE)

Catalog Number: TJK436F000

Series: Tri-Break (TJK)

Poles: 3

Amperage Frame: 40A Frame (trip unit required for actual rating)

Voltage Rating:

• 600V AC Max

• 250V DC Max

Trip Type: Uses interchangeable trip units (not integral to breaker body)

Mounting: Bolt-On

Interrupting Rating:

• 25,000A @ 480Y/277V AC

• 18,000A @ 600V AC

• 22,000A @ 250V DC

Frame Type: TJK Tri-Break

Handle Feature: Gray handle with ON/OFF markings, accepts accessories

Weight: Approx. 6.5 kg (14.3 lbs / 228 oz)

Certifications:

• UL Listed

• CSA Certified

Applications:
Designed for heavy-duty distribution panels, switchboards, and MCCs in commercial, industrial, and institutional environments. The GE Tri-Break series allows for modular trip unit changes, making it versatile for varied load protection requirements.
