Horizon/Square D

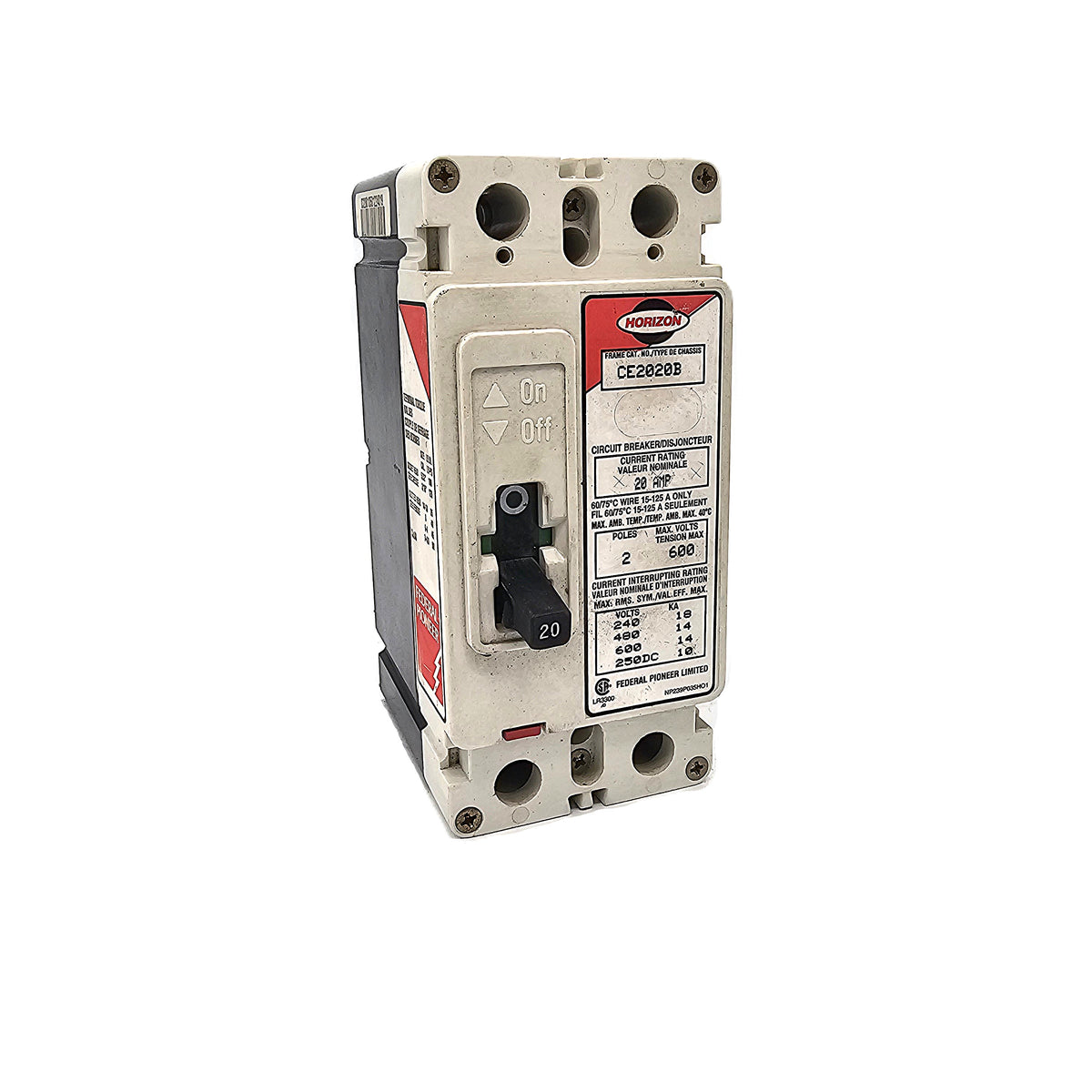

Horizon / Square CE2020B Circuit Breaker 2-Pole, 20 Amp, 600V AC, Thermal Magnetic, CE Frame

Horizon / Square CE2020B Circuit Breaker 2-Pole, 20 Amp, 600V AC, Thermal Magnetic, CE Frame

$385.00 CAD
$385.00 CAD
Sale Sold out
Shipping calculated at checkout.

Manufacturer: Horizon (by Square D / Schneider Electric)
Catalog Number: CE2020B
Series: CE Frame
Poles: 2
Amperage: 20 Amps
Voltage Rating: 600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On

Frame Type: CE Frame (225A max frame with 20A trip installed)
Handle Feature: Grey handle with molded ON/OFF arrows, black 20A rating indicator

Weight: Approx. 1.6 kg (3.6 lbs / 57 oz)

Applications: Light industrial and commercial power distribution. Protection of branch and feeder circuits. Commonly used in panelboards and switchboards requiring compact 2-pole breakers
