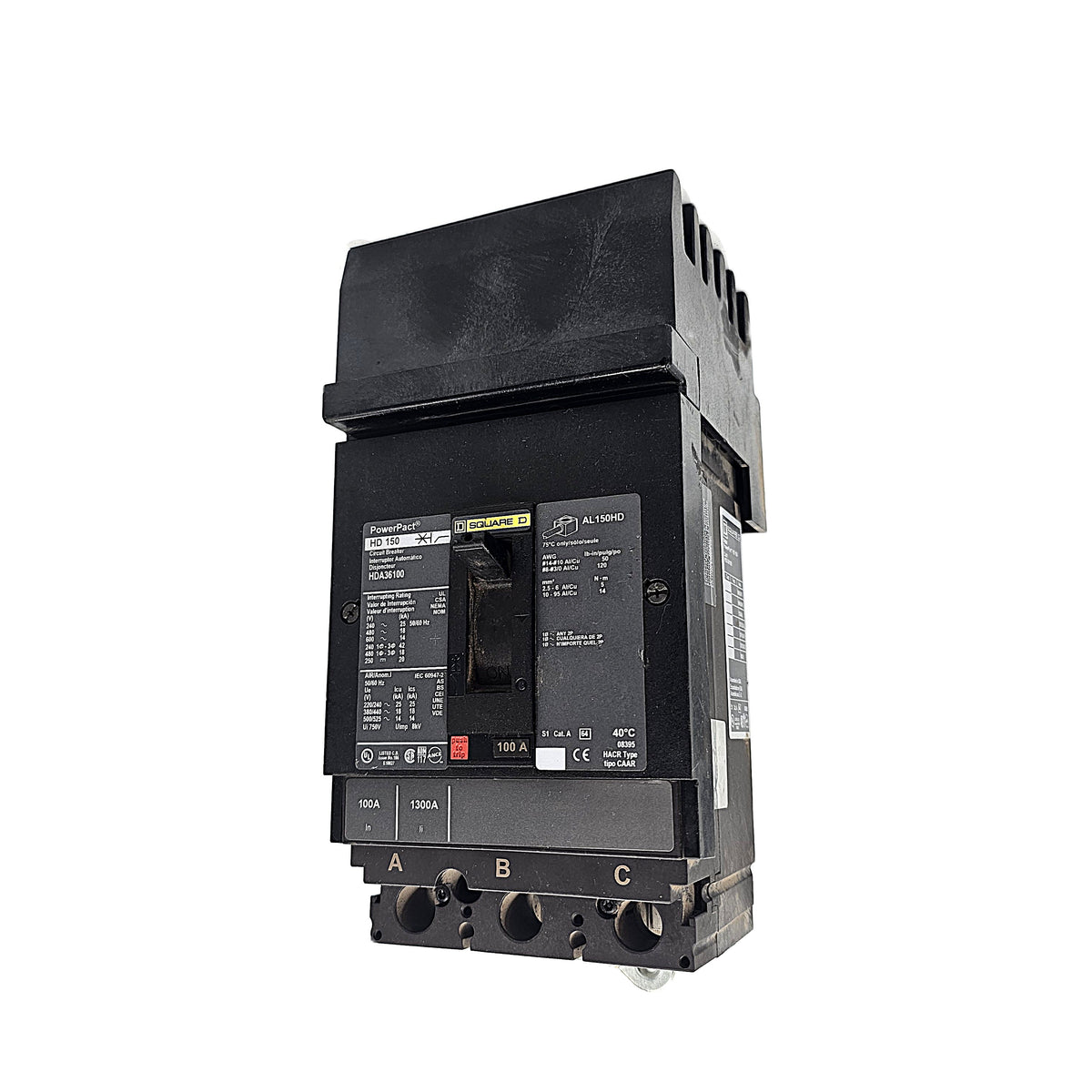

Schneider Electric PowerPact HDA36100 Circuit Breaker 3-Pole, 100 Amp, 600V AC, Thermal Magnetic, HD Frame

Manufacturer: Schneider Electric / Square D
Catalog Number: HDA36100
Series: PowerPact HD
Poles: 3
Amperage: 100 Amps
Voltage Rating:600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On

Frame Type: HD Frame (600A max frame with 100A trip unit installed)
Handle Feature: Black Square D handle with molded ON/OFF markings and green trip indicator

Weight: Approx. 4.8 kg (10.6 lbs / 168 oz)

Applications: Industrial and commercial power distribution systems. Provides overload and short-circuit protection for feeders and downstream equipment. Commonly used in panelboards, switchboards, and MCCs (motor control centers)
