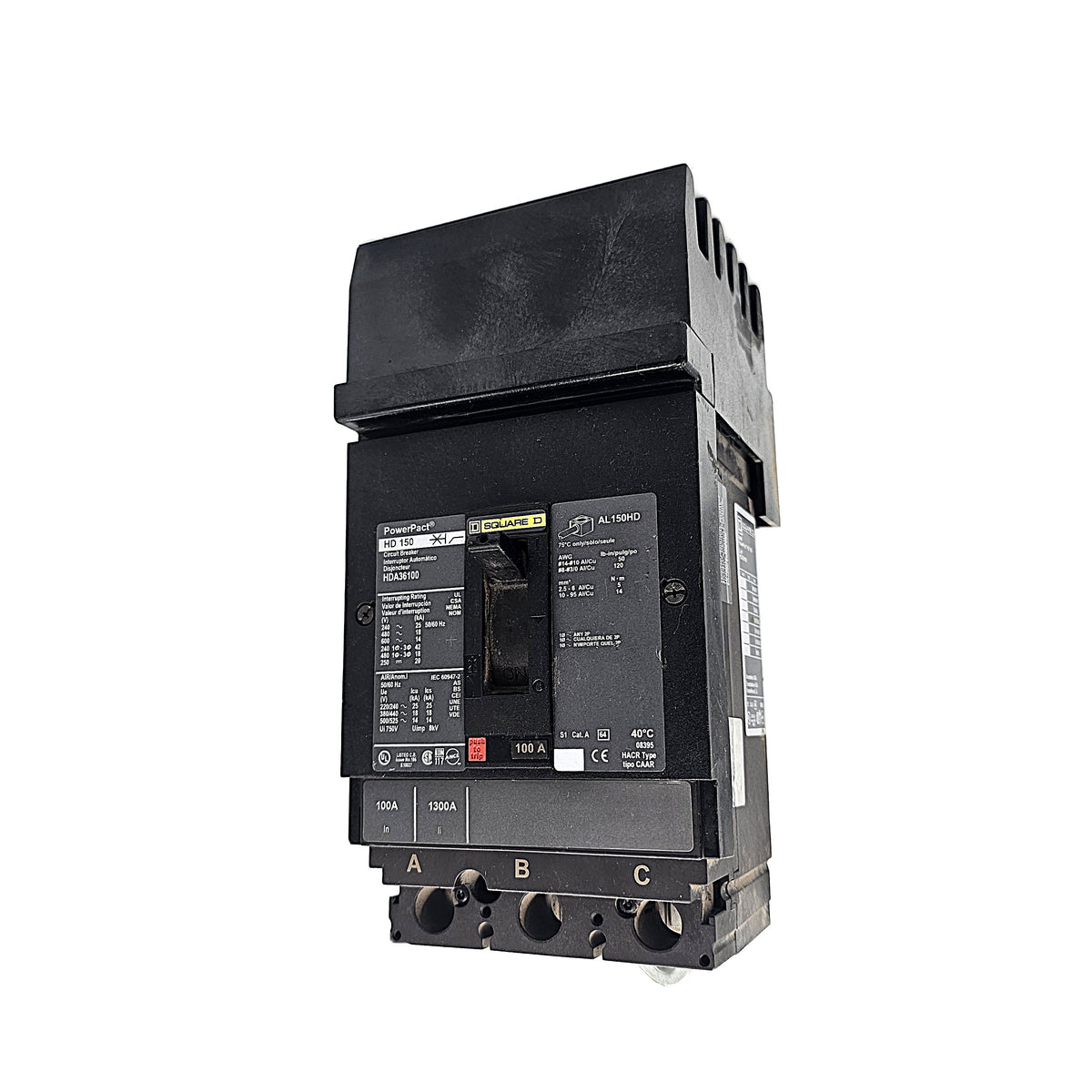

Schneider Electric PowerPact HDA36100 Circuit Breaker 3-Pole, 100 Amp, 600V AC, Thermal Magnetic, HD Frame

Schneider Electric PowerPact HDA36100 Circuit Breaker 3-Pole, 100 Amp, 600V AC, Thermal Magnetic, HD Frame

$775.00 CAD
$775.00 CAD
Sale Sold out
Shipping calculated at checkout.

Manufacturer: Schneider Electric / Square D
Catalog Number: HDA36100
Series: PowerPact HD
Poles: 3
Amperage: 100 Amps
Voltage Rating: 600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On
Frame Type: HD Frame (600A max frame with 100A trip unit installed)
Handle Feature: Black Square D handle with molded ON/OFF markings and green trip status indicator

Weight: Approx. 4.8 kg (10.6 lbs / 168 oz)

Applications: Industrial and commercial distribution systems. Feeder, branch circuit, and equipment protection. Commonly used in switchboards, panelboards, and MCCs
