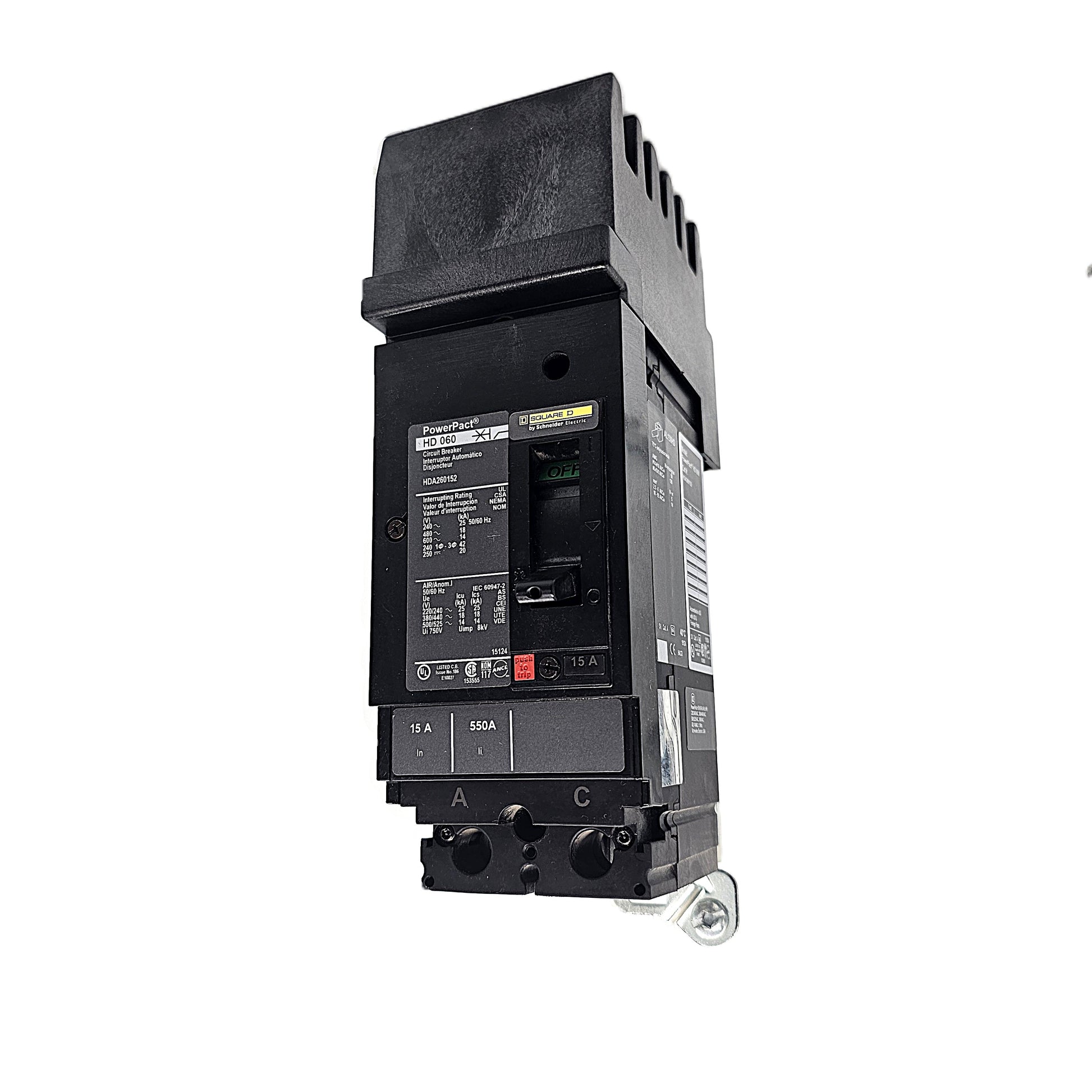

Schneider Electric PowerPact HDA260152 Circuit Breaker 2-Pole, 15 Amp, 600V AC, Thermal Magnetic, HD Frame

Manufacturer: Schneider Electric / Square D
Catalog Number: HDA260152 (15A Trip)
Series: PowerPact HD
Poles: 2
Amperage: 15 Amps
Voltage Rating:600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On

Frame Type: HD Frame (600A max frame with 15A trip unit installed)
Handle Feature: Black Square D handle with molded ON/OFF markings and green trip status window.

Weight: Approx. 4.2 kg (9.3 lbs / 148 oz)

Applications: Designed for protecting small-capacity circuits in industrial and commercial systems. Used for feeder and equipment branch circuit protection. Compatible with panelboards, switchboards, and MCCs
