Schneider Electric

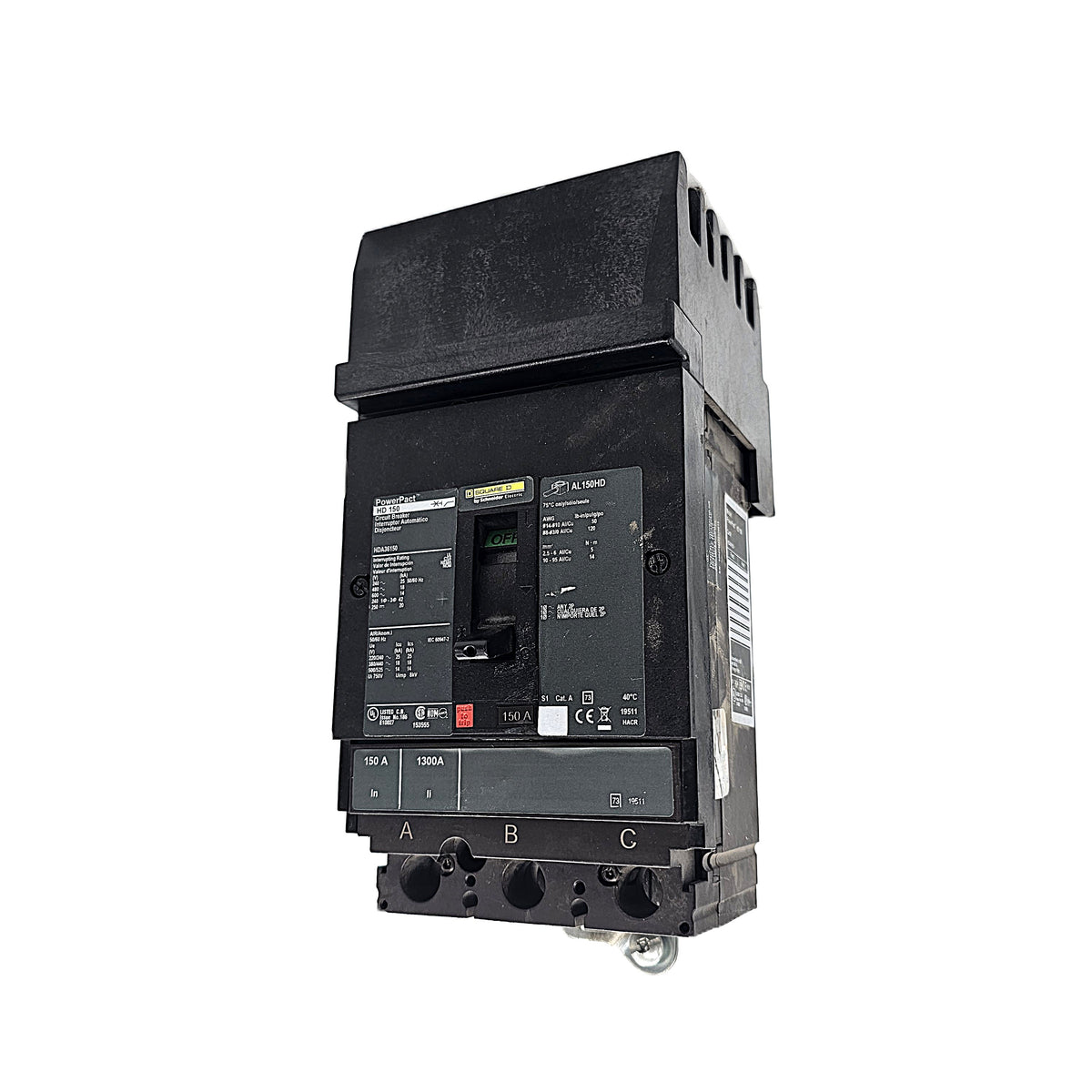

Schneider Electric PowerPact HDA36150 Circuit Breaker 3-Pole, 150 Amp, 600V AC, Thermal Magnetic, HD Frame)

Schneider Electric PowerPact HDA36150 Circuit Breaker 3-Pole, 150 Amp, 600V AC, Thermal Magnetic, HD Frame)

$1,025.00 CAD
$1,025.00 CAD
Sale Sold out
Shipping calculated at checkout.

Manufacturer: Schneider Electric / Square D
Catalog Number: HDA36150
Series: PowerPact HD
Poles: 3
Amperage: 150 Amps
Voltage Rating: 600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On
Frame Type: HD Frame (600A max frame with 150A trip unit installed)
Handle Feature: Black Square D handle with molded ON/OFF indicators and green trip indicator window

Weight: Approx. 5.0 kg (11 lbs / 176 oz)

Applications: Industrial and commercial distribution systems. Feeder and branch circuit protection. Used in panelboards, switchboards, MCCs, and equipment requiring 150A capacity
