Schneider Electric

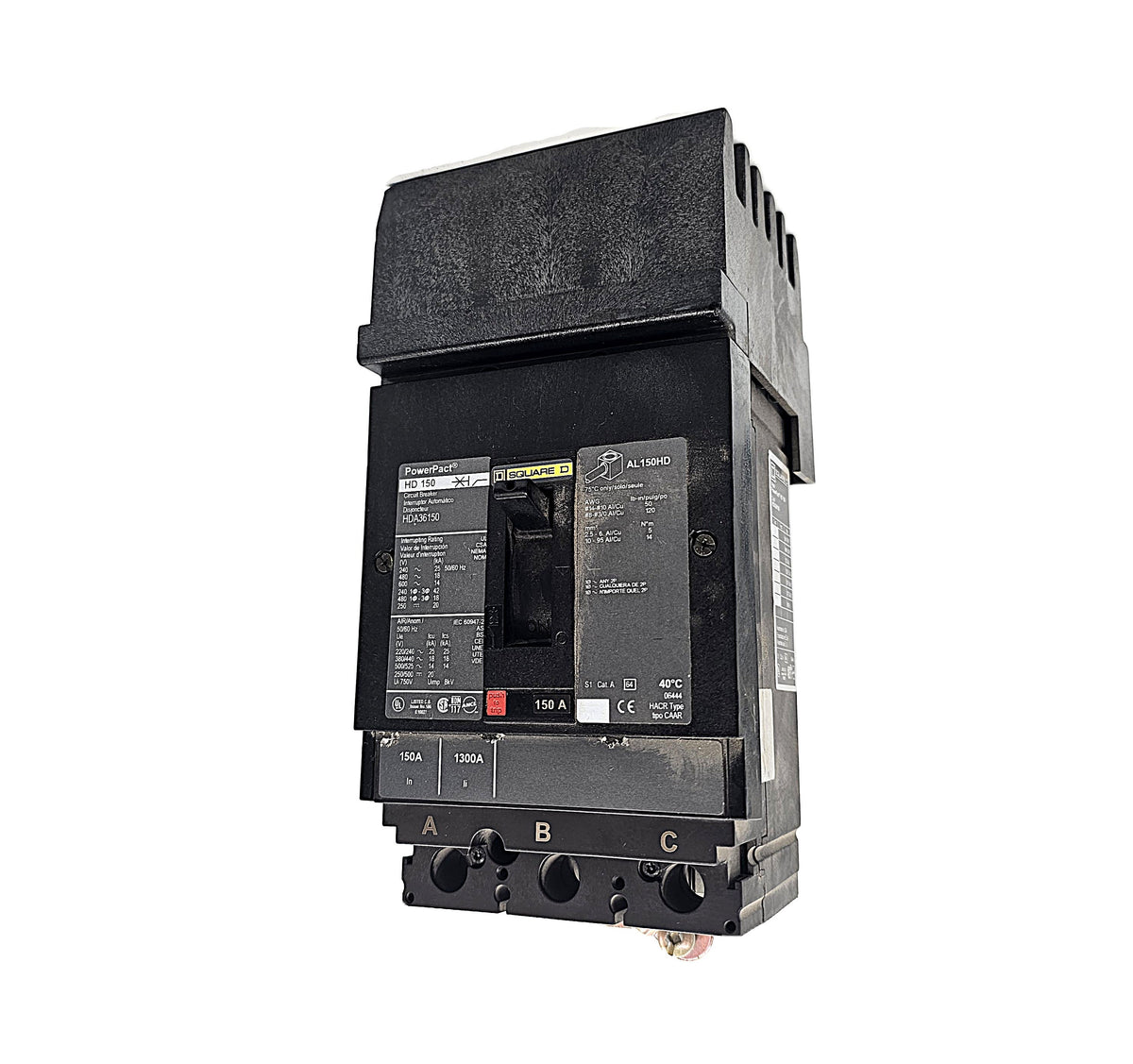

Schneider Electric PowerPact HDA36150 Circuit Breaker 3-Pole, 150 Amp, 600V AC, Thermal Magnetic, HD Frame

Schneider Electric PowerPact HDA36150 Circuit Breaker 3-Pole, 150 Amp, 600V AC, Thermal Magnetic, HD Frame

$1,025.00 CAD
$1,025.00 CAD
Sale Sold out
Shipping calculated at checkout.

Manufacturer: Schneider Electric / Square D
Catalog Number: HDA36150
Series: PowerPact HD
Poles: 3
Amperage: 150 Amps
Voltage Rating: 600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On

Frame Type: HD Frame (600A max frame with 150A trip unit installed)
Handle Feature: Black Square D handle with molded ON/OFF indicators and green trip indicator window

Weight: Approx. 5.0 kg (11 lbs / 176 oz)

Applications: Industrial and commercial power distribution. Feeder and equipment branch circuit protection. Suitable for switchboards, panelboards, and MCCs

View full details

  • Included on All Generators

    • Serviced
    • 30 Day Warranty
    • Load Tested

  • Shipping & Returns

    Shipping can be provided at an extra cost. No Returns
