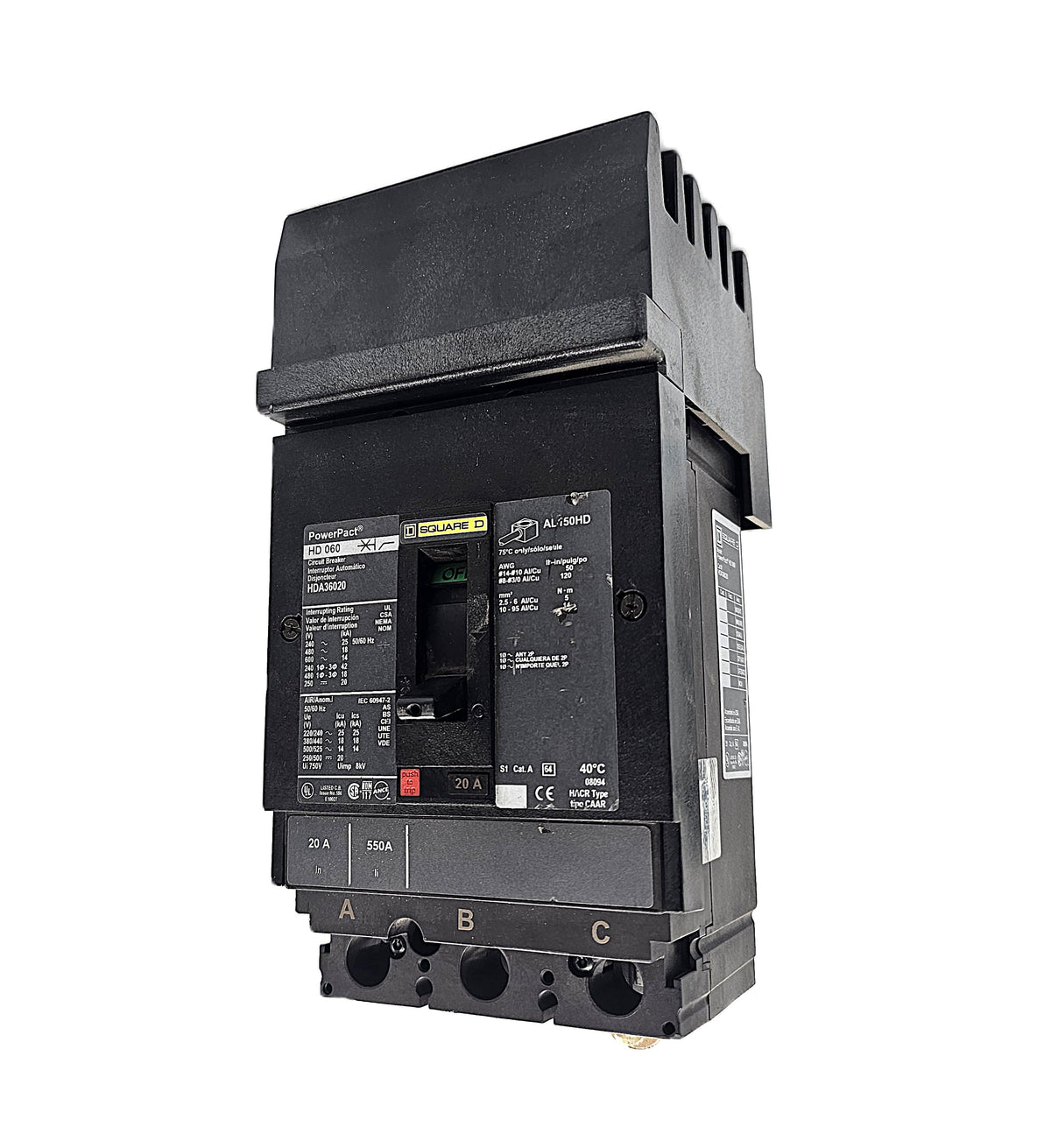

Schneider Electric PowerPact HDA36020 Circuit Breaker 3-Pole, 20 Amp, 600V AC, Thermal Magnetic, HD Frame

Manufacturer: Schneider Electric / Square D
Catalog Number: HDA36020
Series: PowerPact HD
Poles: 3
Amperage: 20 Amps
Voltage Rating:600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On

Frame Type: HD Frame (600A max frame with 20A trip unit installed)
Handle Feature: Black Square D handle with molded ON/OFF markings and green trip status window

Weight: Approx. 4.3 kg (9.5 lbs / 152 oz)

Applications: Protection of light-duty industrial and commercial loads. Ideal for feeder and branch circuits where a lower amperage is required. Suitable for panelboards, switchboards, and MCCs
