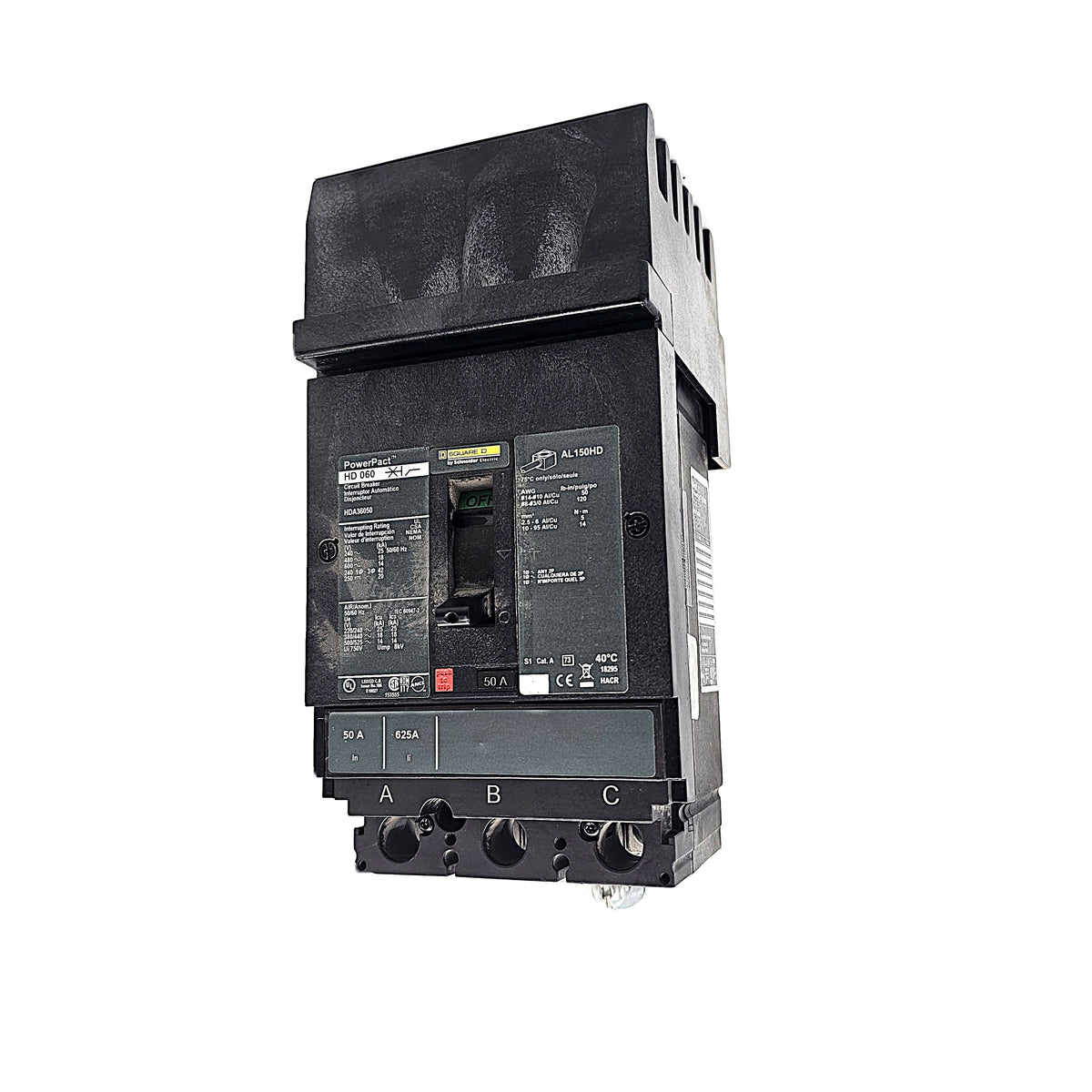

Schneider Electric PowerPact HDA36050 Circuit Breaker 3-Pole, 50 Amp, 600V AC, Thermal Magnetic, HD Frame

Manufacturer: Schneider Electric
Catalog Number: HDA36050
Series: PowerPact HD
Poles: 3
Amperage: 50 Amps
Voltage Rating:600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On

Frame Type: HD Frame (600A max frame, 50A trip unit installed)
Handle Feature: Black handle with molded "OFF/ON" positions and green trip indicator

Weight: Approx. 4.5 kg (9.9 lbs / 158 oz)

Applications: Suitable for commercial and industrial distribution systems. Provides overload and short-circuit protection for feeders and equipment. Commonly used in panelboards, switchboards, and MCCs (motor control centers)
