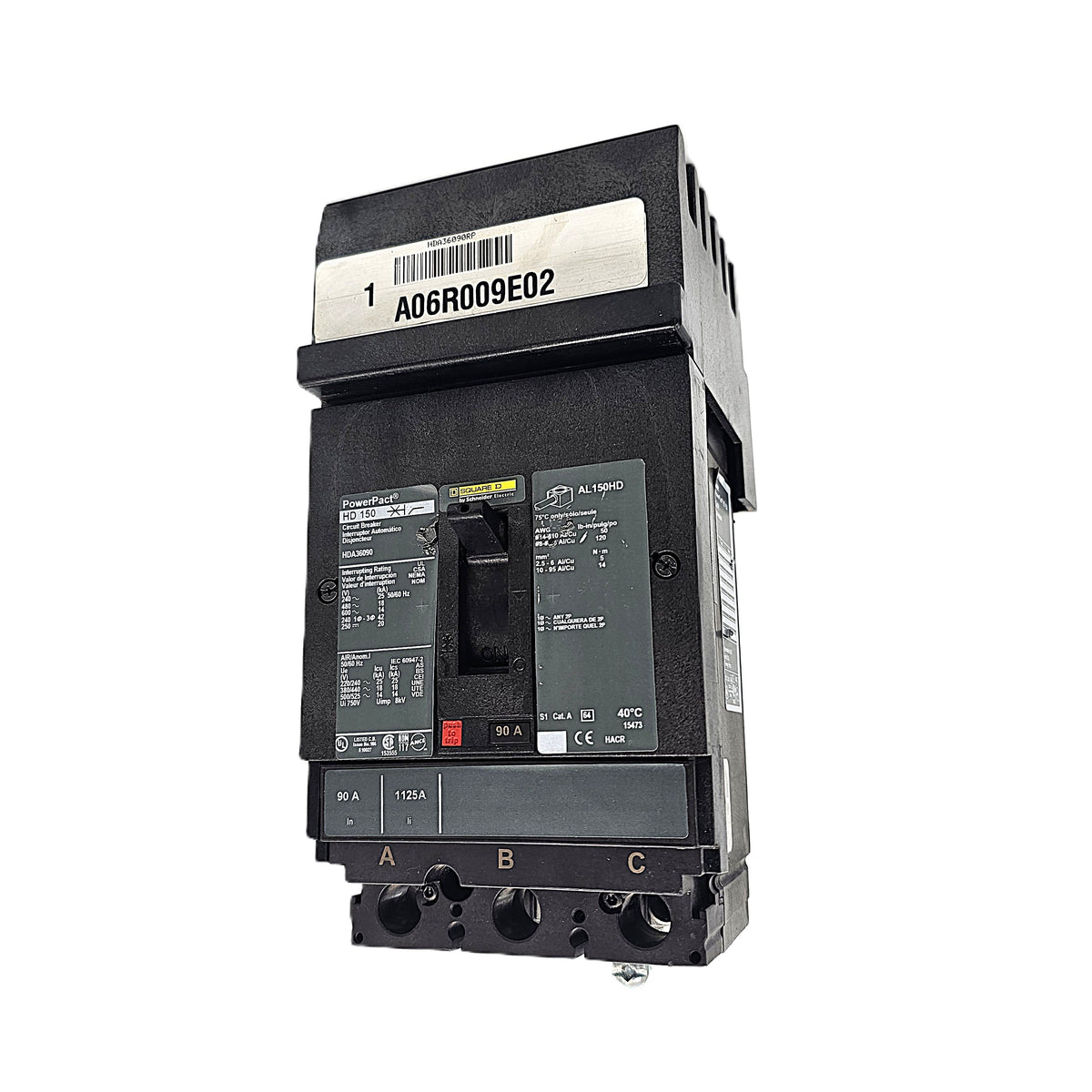

Schneider Electric PowerPact HDA36090 Circuit Breaker 3-Pole, 90 Amp, 600V AC, Thermal Magnetic, HD Frame

Manufacturer: Schneider Electric
Catalog Number: HDA36090
Series: PowerPact HD
Poles: 3
Amperage: 90 Amps
Voltage Rating:600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On

Frame Type: HD Frame (600A max frame with 90A trip unit installed)
Handle Feature: Black Square D handle with molded ON/OFF indicators and green trip indicator window

Weight: Approx. 4.7 kg (10.4 lbs / 165 oz)

Applications: Industrial and commercial distribution systems. Protection for feeders, branch circuits, and downstream equipment. Commonly used in switchboards, panelboards, and MCC applications
