Square D BDA34045 Circuit Breaker 3-Pole, 45 Amp, 600V AC, PowerPact BD Frame

Manufacturer: Square D (by Schneider Electric)

Catalog Number: BDA34045

Series: PowerPacT BD

Poles: 3

Amperage: 45 Amps

Voltage Rating: 600V AC Max, 250V DC Max

Trip Type: Thermal Magnetic

Mounting: I-Line Compatible (Current Limiting)

Frame Type: BD345

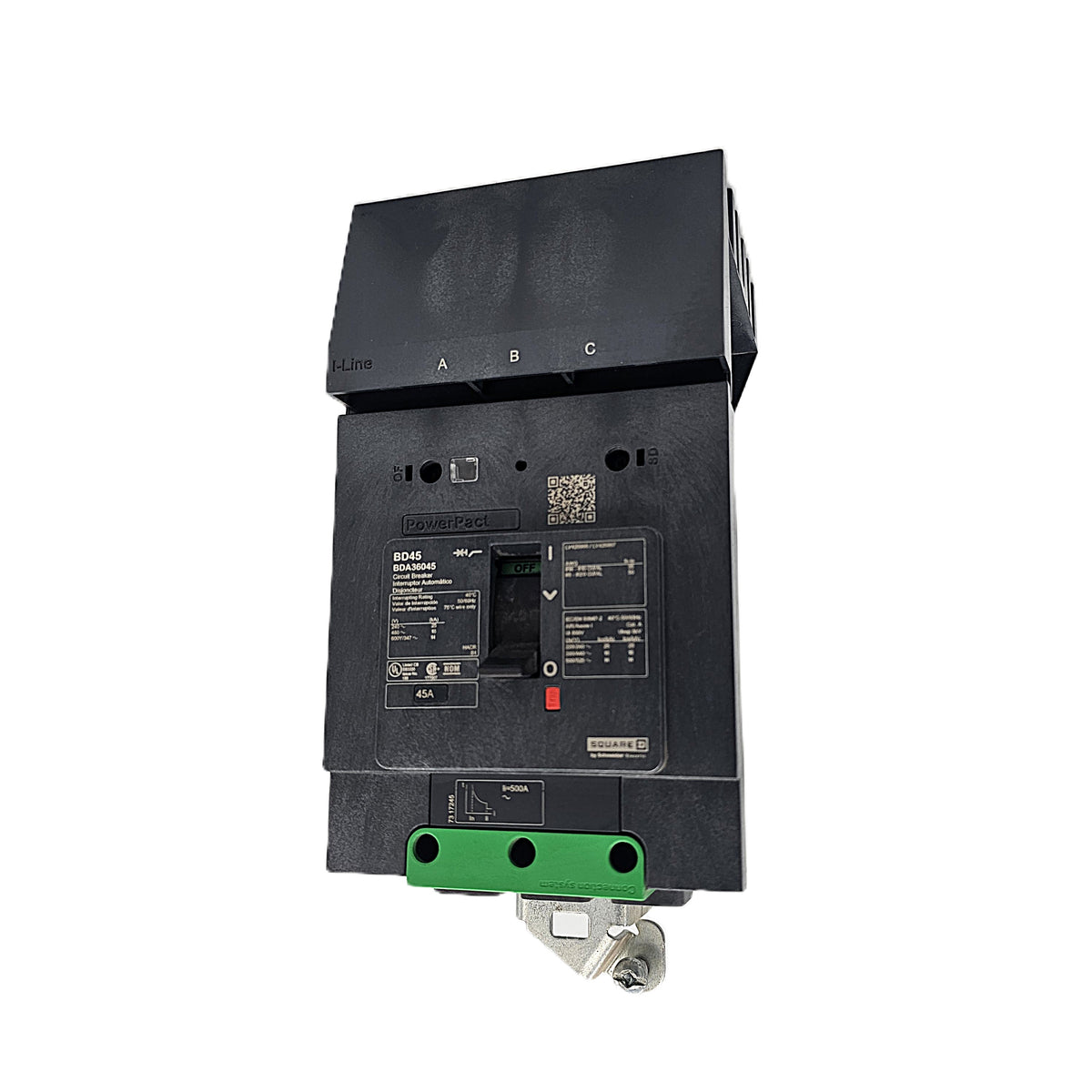

Handle Feature: Black molded handle with ON/OFF indicator, red push-to-trip button, “45A” molded rating

Weight: Approx. 4,900 grams (10.80 lbs / 172 oz)

Applications: Industrial feeder and branch circuit protection. Motor control centers. Commercial power distribution. High-interrupting applications requiring compact frame size
