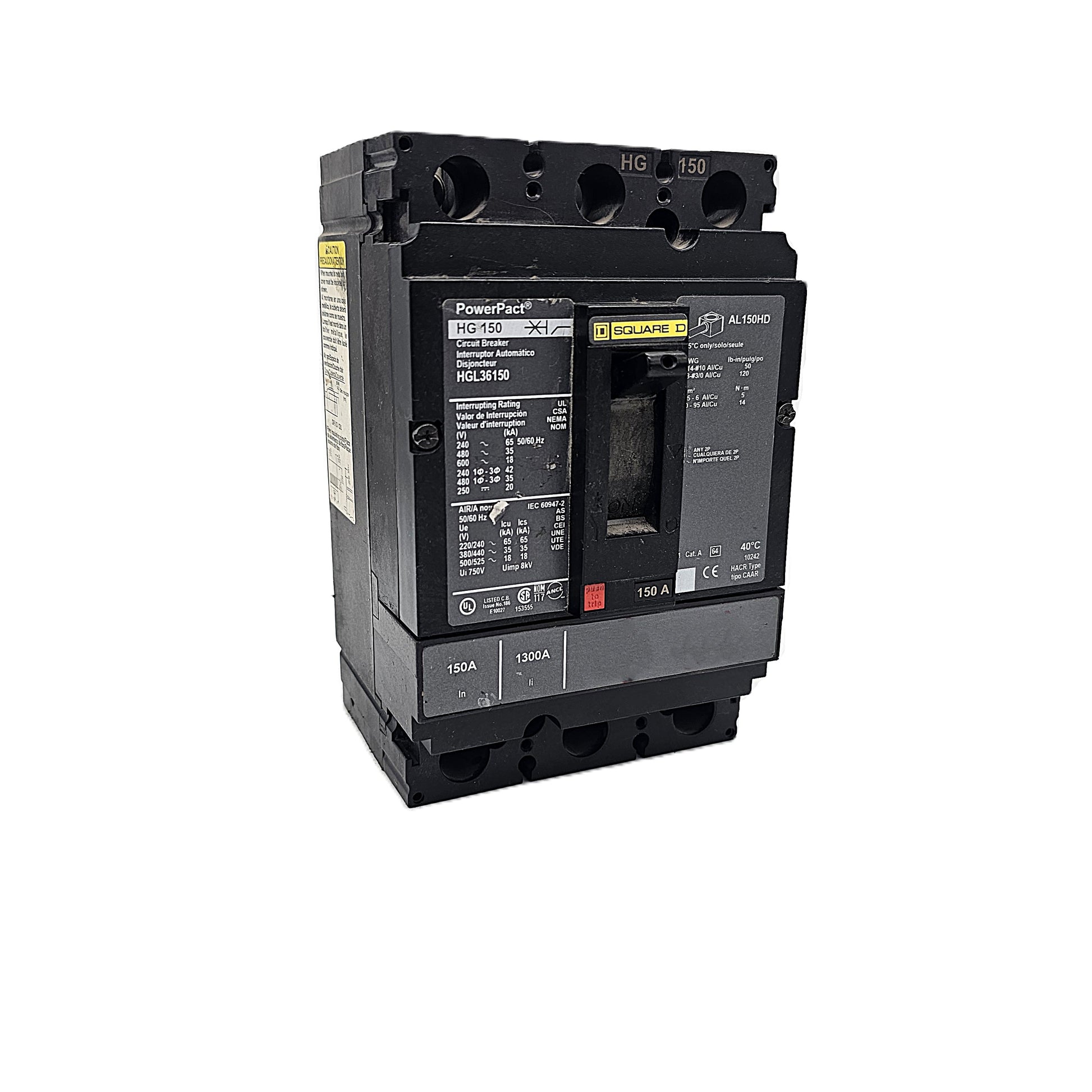

Square D HGL36150 Circuit Breaker 3-Pole, 150 Amp, 600V AC, PowerPact HG-Frame

Manufacturer: Square D (by Schneider Electric)

Catalog Number: HGL36150

Series: PowerPacT HG-Frame

Poles: 3

Amperage: 150 Amps

Voltage Rating:

• 600V AC Max

• 250V DC Max

Trip Type: Thermal Magnetic

Mounting: Plug-In / Bolt-On (HG Frame standard mounting)

Interrupting Rating (kA):

• 240V AC: 65 kA

• 480V AC: 35 kA

• 600V AC: 25 kA

• 250V DC: 14 kA

Frame Type: HG (Compact Molded Case)

Handle Feature: Black molded handle with ON/OFF indicator, red push-to-trip button, “150A” molded rating

Certifications:

• UL Listed

• CSA Certified

• IEC Compliant

Weight: Approx. 2,600 grams (5.73 lbs / 91 oz)

Special Notes:

• Top cover marked HG 150 for easy identification

• Compatible with H-Line panelboards and PowerPacT distribution systems

• Same frame size as lower amperages (20A–150A) for consistent installation

Applications:

• Branch circuit and feeder protection

• Industrial control equipment

• Motor loads, HVAC, and lighting protection

• Commercial and industrial distribution systems
