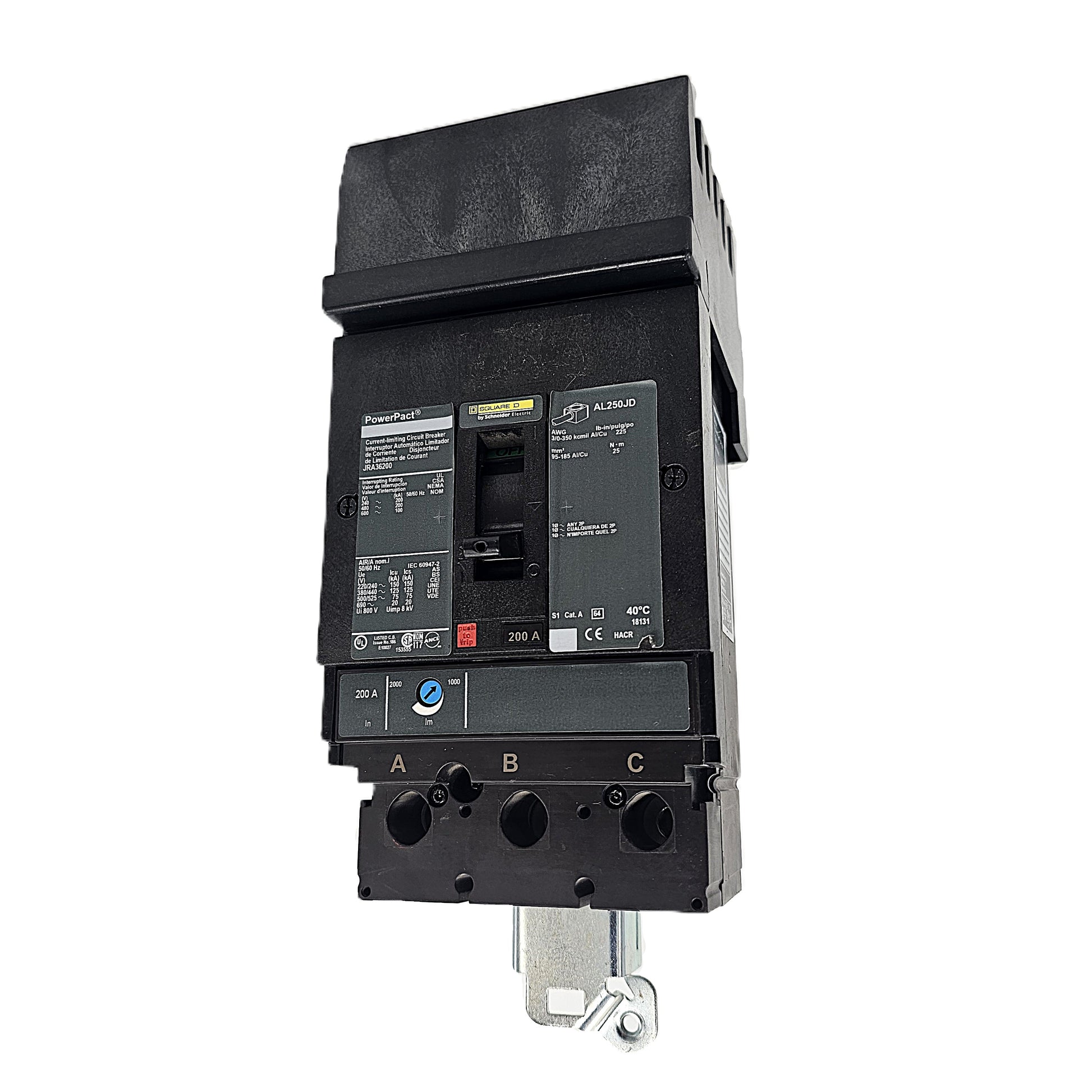

Square D JRA36200 Circuit Breaker 3-Pole, 200 Amp, 600V AC, PowerPact JL Frame

Manufacturer: Square D (Schneider Electric)

Catalog Number: JRA36200

Series: PowerPacT JR250

Poles: 3

Amperage: 200 Amps

Voltage Rating: 600V AC Max, 250V DC Max

Trip Type: Thermal Magnetic

Mounting: Bolt-On / I-Line compatible

Frame Type: JL250

Handle Feature: Black molded handle with ON/OFF indicator, red push-to-trip button, “200A” molded rating

Weight: Approx. 6,400 grams (14.11 lbs / 225 oz)

Applications: Industrial feeder and branch circuit protection. Switchboards and panelboards. Motor control centers (MCCs). Commercial and industrial distribution systems
