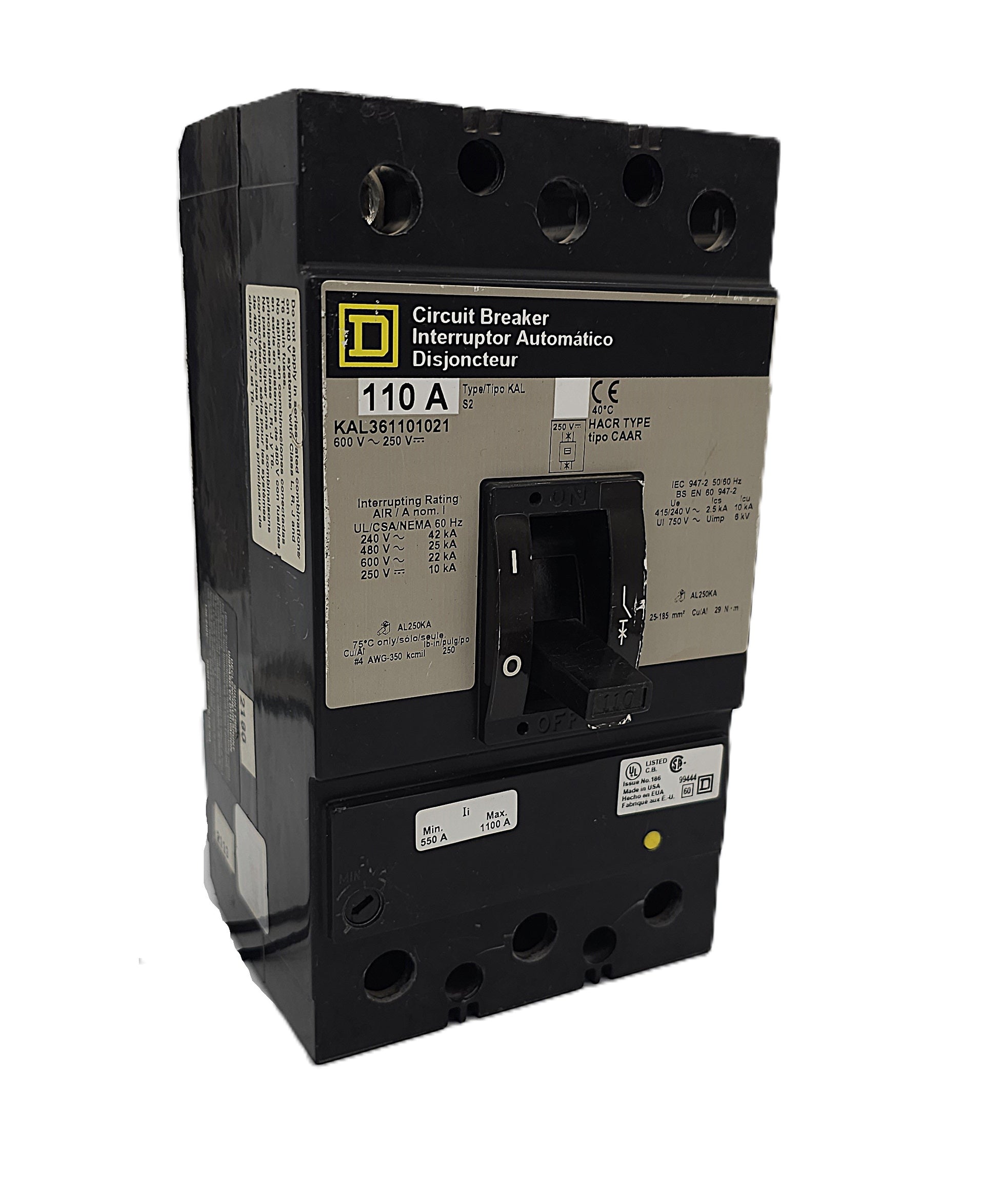

Square D KAL36110 Circuit Breaker – Thermal Magnetic 3-Pole, 110 Amp, 600V AC / 250V DC, Bolt-On, KAL Frame, Shunt Trip
Square D KAL36110 Circuit Breaker – Thermal Magnetic 3-Pole, 110 Amp, 600V AC / 250V DC, Bolt-On, KAL Frame, Shunt Trip
-
Manufacturer: Square D / Schneider Electric
-
Catalog Number: KAL361101021
-
Type: Thermal Magnetic – with Shunt Trip
-
Series: 2
-
Frame Type: KAL
-
Poles: 3
-
Amperage: 110 Amps
-
Voltage Rating:
-
600V AC Max
-
250V DC Max
-
-
Interrupting Ratings (AIR):
-
25 kA @ 240V AC
-
22 kA @ 480V AC
-
14 kA @ 600V AC
-
10 kA @ 250V DC
-
-
Breaking Capacity (IEC 947-2 / 60947-2):
-
25 kA @ 240V
-
22 kA @ 415/240V
-
6 kA @ 750V
-
-
Mounting Type: Bolt-On
-
Trip Unit: Fixed Thermal Magnetic
-
Magnetic Trip Range:
-
Low: 550A
-
High: 1100A
-
-
Shunt Trip Feature:
-
Included (per catalog suffix “I021”)
-
-
Terminals:
-
Lug Type: AL250KA
-
Wire Size: #4 AWG–350 kcmil (Cu/Al)
-
Torque: 29 N·m
-
For use with 75°C rated wire only
-
-
Certifications:
-
UL Listed
-
CSA Certified
-
-
Weight: Approx. 2.7 kg (6.0 lbs / 96 oz)
-
Handle Features:
-
Black handle with white “110” amp molded indicator
-
ON/OFF position clearly visible
-
-
Special Notes:
-
CE Marked
-
HACR Type
-
Shunt trip accessory internally mounted
-
Made in U.S.A.
-

-
