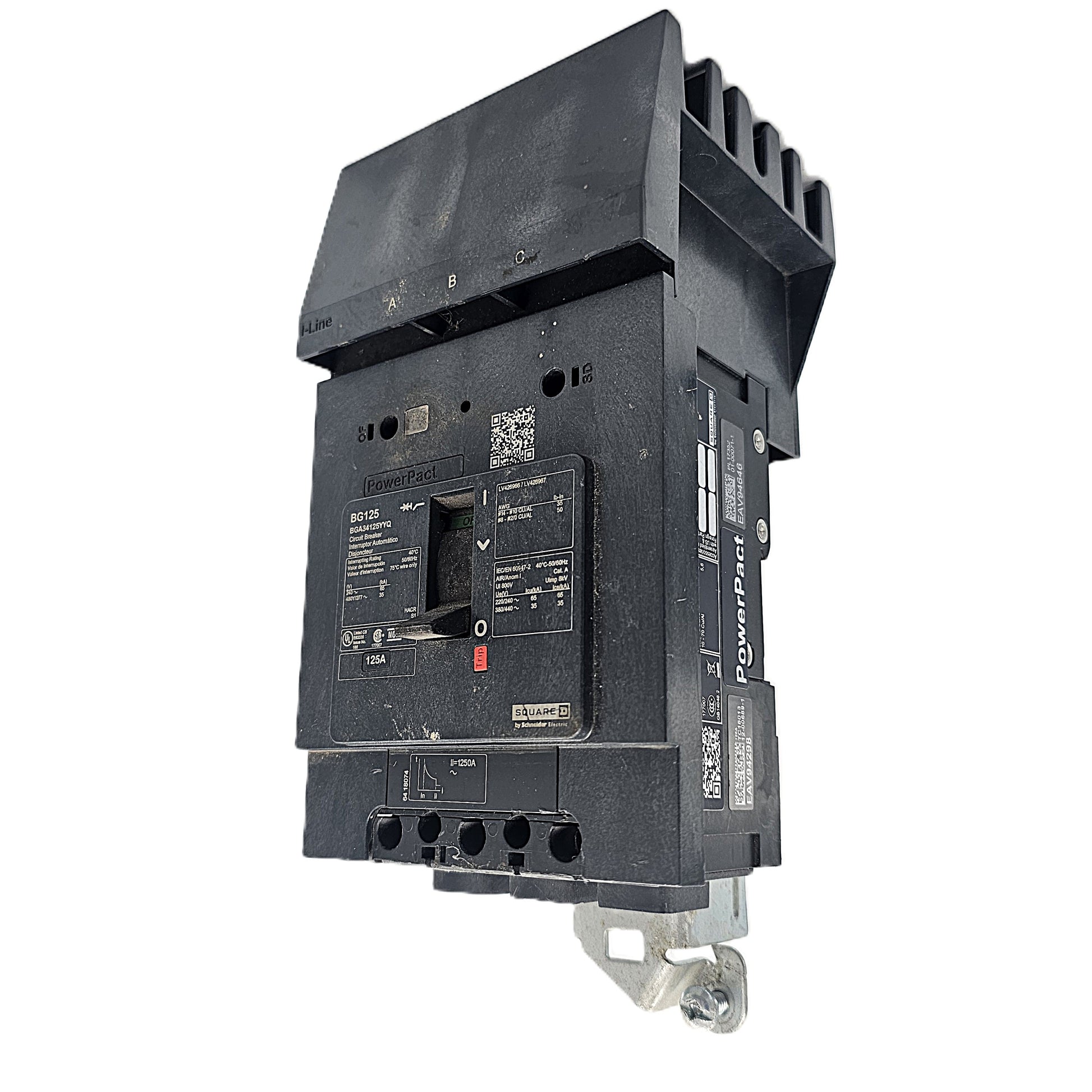

Square D PowerPact BQ31225 Circuit Breaker 3-Pole, 125 Amp, 600V AC, Bolt-On, PowerPact BQ Frame

Manufacturer: Schneider Electric / Square D
Catalog Number: BQ31225TM
Series: PowerPact BQ
Poles: 3
Amperage: 125 Amps
Voltage Rating:

• 600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On
Interrupting Rating:

• 65,000A @ 240V AC

• 35,000A @ 480V AC

• 18,000A @ 600V AC

Frame Type: BQ Frame
Handle Feature: Black handle with molded “125” amp rating, ON/OFF indicator, test/maintenance toggle
Terminal Type: Lugs (A-B-C phase marked)
Certifications:

• UL Listed

• CSA Certified

Weight: Approx. 3,800 grams (8.38 lbs / 133.9 oz)

Applications:

• Protects feeder and branch circuits in commercial, industrial, and institutional electrical systems.

• Suitable for panelboards, switchboards, MCCs, and heavy-duty equipment disconnects.

• Compact size for use in installations with limited space.
