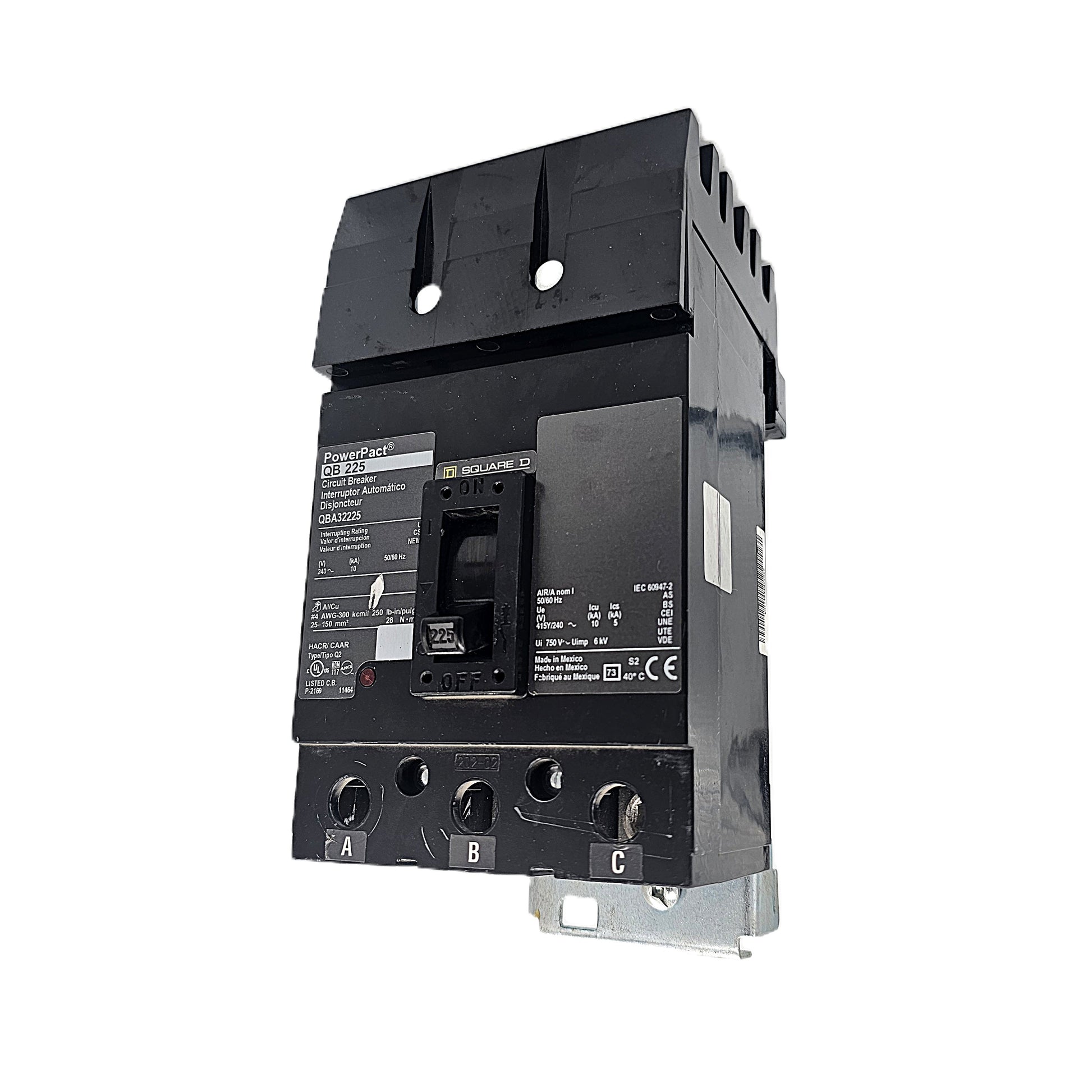

Square D PowerPact QBA32225 Circuit Breaker 3-Pole, 225 Amp, 600V AC, Bolt-On, PowerPact QB Frame

Manufacturer: Schneider Electric / Square D
Catalog Number: QBA32225
Series: PowerPact QB
Poles: 3
Amperage: 225 Amps
Voltage Rating:

• 600V AC Max

Trip Type: Thermal Magnetic
Mounting: Bolt-On
Interrupting Rating:

• 35,000A @ 240V AC

• 25,000A @ 480V AC

• 18,000A @ 600V AC

Frame Type: QB Frame (QB 225 series)
Handle Feature: Black handle with molded “225” amp rating, ON/OFF indicator
Terminal Type: Lugs (A-B-C phase marked)
Certifications:

• UL Listed

• CSA Certified

Weight: Approx. 4,800 grams (10.58 lbs / 169.6 oz)

Applications:

• Provides feeder and branch circuit protection in commercial, industrial, and institutional electrical systems.

• Common in panelboards, switchboards, MCCs, and machinery disconnects.

• Protects against overload and short-circuit faults.
